Choose The Perfect Lift For You

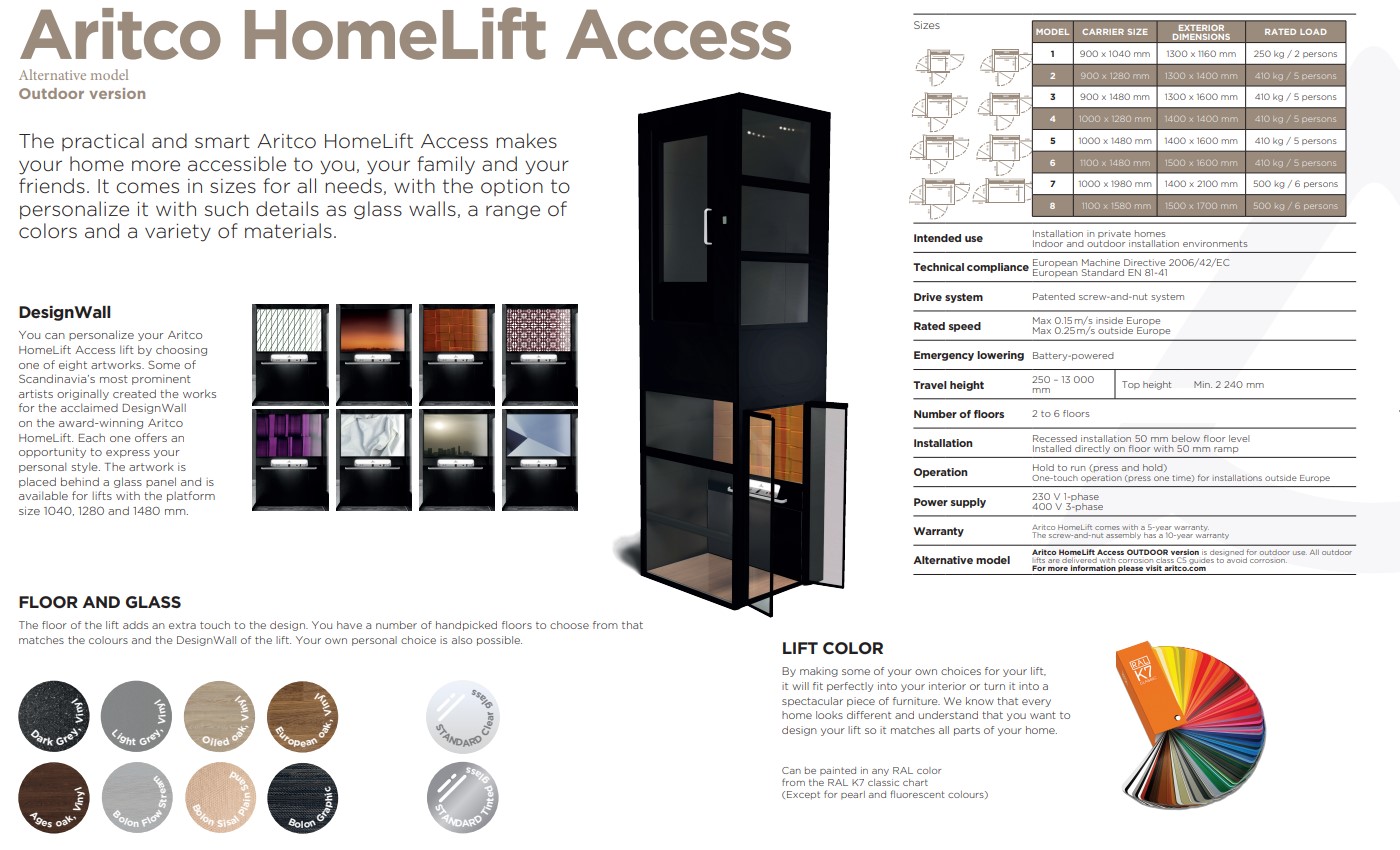

ARITCO HomeLift Access
Aritco HomeLift Access is intended to provide you, your family and your friends access to all areas of your home. A practical and stylish lift with sizes to suit all requirements. Energy-efficient, with low power consumption and operating costs - it consumes the same amount of energy as a kettle or hairdryer whilst being made from up to 95% recyclable materials.
A home lift expands users' options, improves their lifestyles, and can future-proof forever homes; that's why the Aritco HomeLift Access is available in various finishes, configurations, options, and additions to match any home. You can select from more than 200 colours, two glass types, and eight floor materials for design and personalisation.
Furthermore, it has been specifically designed for the home. As a result, all features have been designed to provide an easy user experience, with a fully lit control panel of buttons that are all simple to use. We also understand the importance of safety, so our lifts have features like safety edges around the platform, locking doors, emergency battery lowering, and a telephone or autodialler in the lift.
Features
Multiple lift sizes
Single or double glass, half height gate or fire rated doors available
Shaft enclosure supplied with lift
Safety edges around platform
Glazed or solid shaft panels
50mm pit or ramp
Door on up to 3 different sides
Integral electrical cabinet
Specifications
Technical compliance
European Machine directive
2006/42/EC
European standard EN 81-41
Lift type
Home lift intended for installation in private homes. Only to be used in buildings without public access.
Drive System
Patented screw/nut system
Rated Speed (Max)
0,15m/s
Travel Height
500 -13 000 mm 1
No. Of Stops
Max. 6 stops per lift
Number of doors
Max. 6 doors per lift
No. of doors per floor
Max. 2 doors per floor
Pit
50 mm (no pit is required when there is a threshold/ramp)
Top Height
Minimum 2240 mm. Maximum 4000 mm. (1100-1600 mm with half height door)
Platform control
”Hold to run”, the destination button must be kept pressed down during the whole ride
Landing control (on door)
One-touch call
Environment
Indoor/outdoor
Emergency lowering
Battery operated emergency lowering
Control voltage
24V
Motor
2,8kW (3kW for higher speed)
Locking System
Electrical 2
Power supply
1-phase 230V 50 Hz/16 A/16 A slow 3-phase 230V 50 Hz/9 A/16 A slow 3-phase 400V 50 Hz/5.2 A/16 A slow
Rated load
250, 410 or 500 kg (depending on platform size)
1 Travel height when having a half door is maximum 3000 mm
2 For lifts with double hinged glass doors mechanical locking system will be used.
Dimensions
Platform Size |
Exterior Dimensions |
Rated Load |
Persons |
Wheelchair |
---|---|---|---|---|
900 x 1040 mm |
1300 x 1160 mm |
250 kg |
2 pers. |
- |
900 x 1280 mm |
1300 x 1400 mm |
410 kg |
5 pers. |
Lone user or type A* |
900 x 1480 mm |
1300 x 1600 mm |
410, 500 kg |
5, 6 pers. |
A or B with attendant* |
1000 x 1280 mm |
1400 x 1400 mm |
410 kg |
5 pers. |
Lone user or type A* |
1000 x 1480 mm |
1400 x 1600 mm |
410, 500 kg |
5, 6 pers. |
A or B with attendant* |
1100 x 1480 mm |
1500 x 1600 mm |
410, 500 kg |
5, 6 pers. |
A or B with attendant, adjacent entry* |
1000 x 1980 mm |
1400 x 2100 mm |
500 kg |
6 pers. |
A or B with attendant* |
1100 x 1580 mm |
1500 x 1700 mm |
500 kg |
6 pers. |
A or B with attendant, adjacent entry* |
